Vinkelrör, 90° långt med rakände, 316L
Art. nr 282217

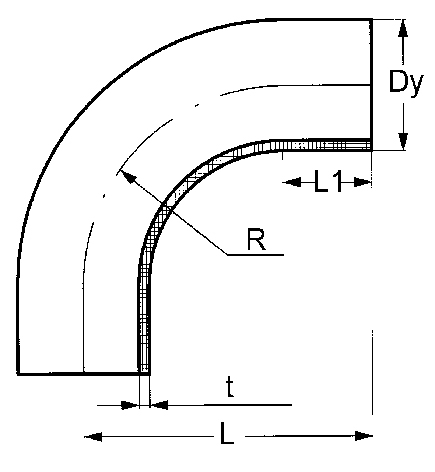

VINKELRÖR 90° ISO 51 R=76
Produktvarianter
 Art. nr | Dy 25,0 mm | t 1,2 mm | L 65,0 mm | L1 27,5 mm | R 37,5 mm | |
Art. nr | Dy 38,0 mm | t 1,2 mm | L 85,0 mm | L1 28,0 mm | R 57,0 mm | |
Art. nr 282217 | Dy 51,0 mm | t 1,2 mm | L 110,0 mm | L1 33,5 mm | R 76,0 mm | |
Art. nr | Dy 63,5 mm | t 1,6 mm | L 135,0 mm | L1 39,7 mm | R 95,3 mm | |
Art. nr | Dy 76,1 mm | t 1,6 mm | L 155,0 mm | L1 40,8 mm | R 114,2 mm | |
Art. nr | Dy 101,6 mm | t 2,0 mm | L 195,0 mm | L1 42,5 mm | R 152,0 mm |
